Three-Leg Stool

Solid English ash · Turned in Sheffield

Kerf & Grain makes this stool at our bench and measures it before it leaves, so the stool you get matches the drawing beside every photograph.

£285

Batch 14 · 5 left

Ø 320 × 450 mm · 2.4 kg

See all four views

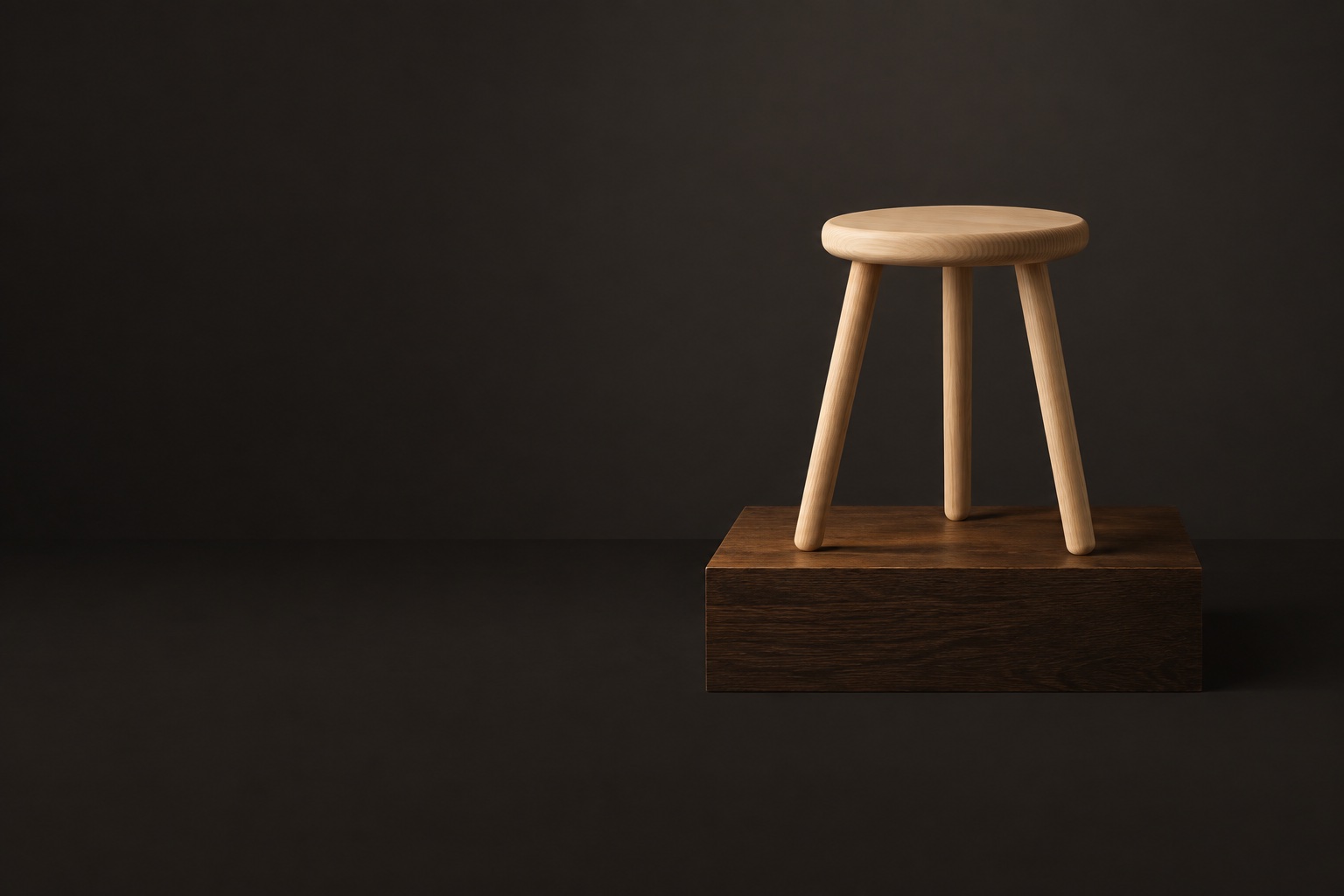

The Kerf & Grain Three-Leg Stool in pale ash on a low block of dark oak, lit by one warm lamp on a dark graphite set.
Drawn: height 450 mm, seat Ø 320 mm.

Fig. 1 · Stool 14-08, measured

Table height, and light enough to carry

These are the bench figures for stool 14-08, the next one we will ship.

  • 450mm

    Seat height

    Dining-chair height, so it tucks under a table.

  • 2.4kg

    Weight

    About as heavy as a full kettle.

  • 12°

    Leg splay

    Each leg leans out, so the stance is wider than the seat.

  • 8%

    Moisture at turning

    Dry enough that the joints stay tight in a warm room.

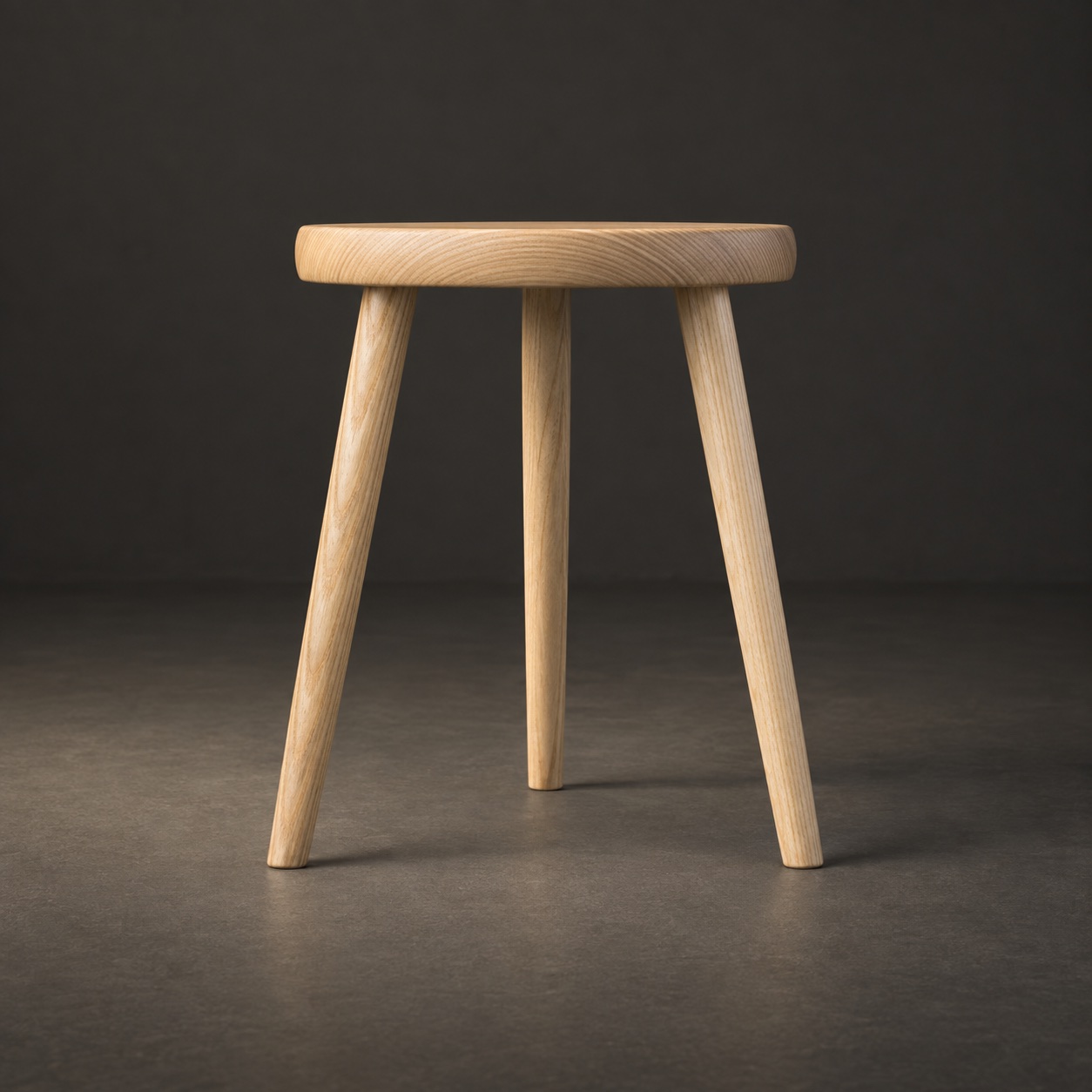

Front view of the stool, 360 mm across the feet and 450 mm high.
Angle of the view

Four views, one stool

Drawn to size from four sides

We photograph every piece square to the camera and draw its real measurements beside each view. Choose an angle under the picture to turn it.

  1. Front

    360 mm across the feet, 450 mm high

    One board of ash makes the seat. It is 30 mm thick and rounded above and below, so there is no hard edge under your legs.

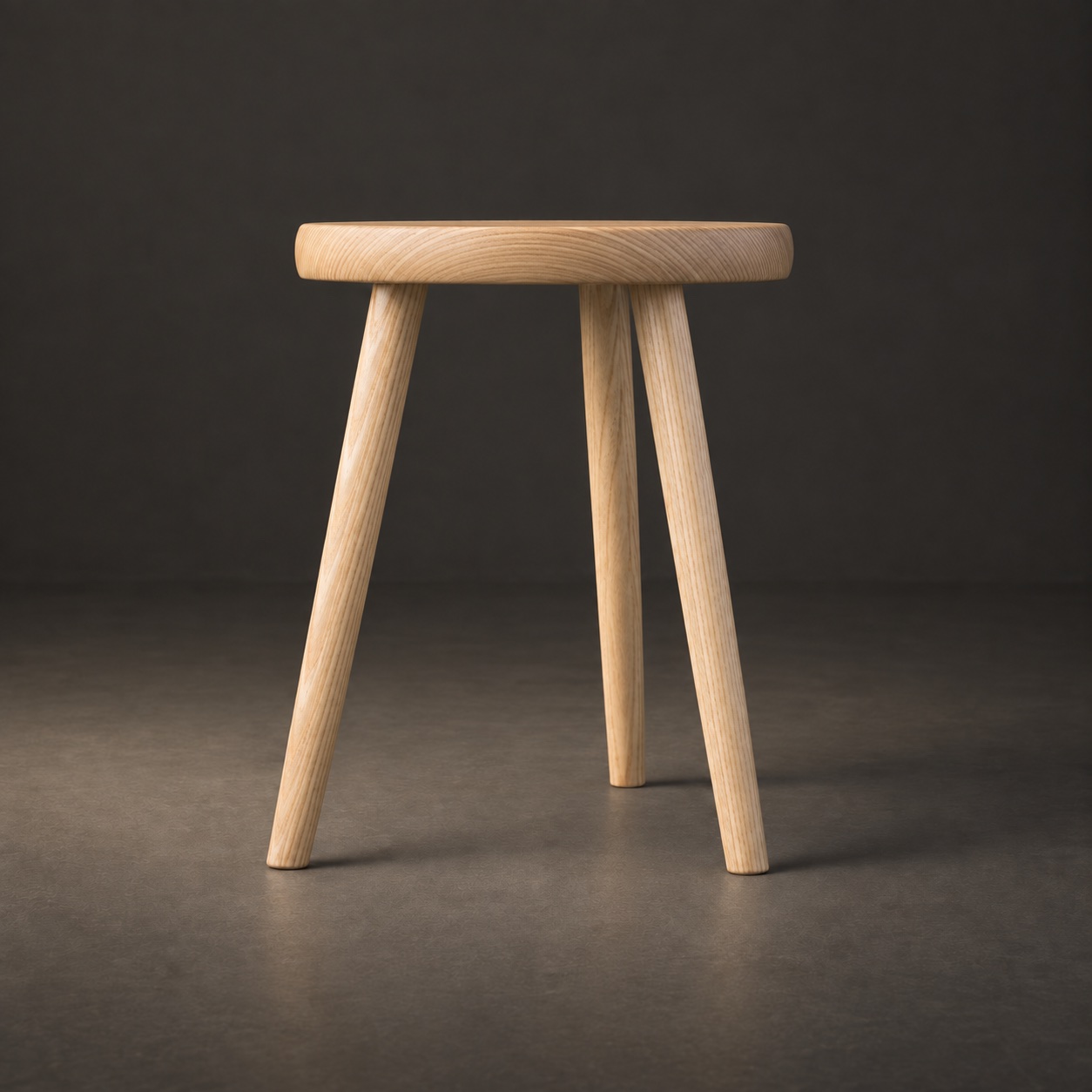

  2. Side

    360 mm front to back, 450 mm high

    A quarter turn and the depth reads the same, because the three feet sit on one circle. Each leg leans out 12°, so it stays put when you shift your weight.

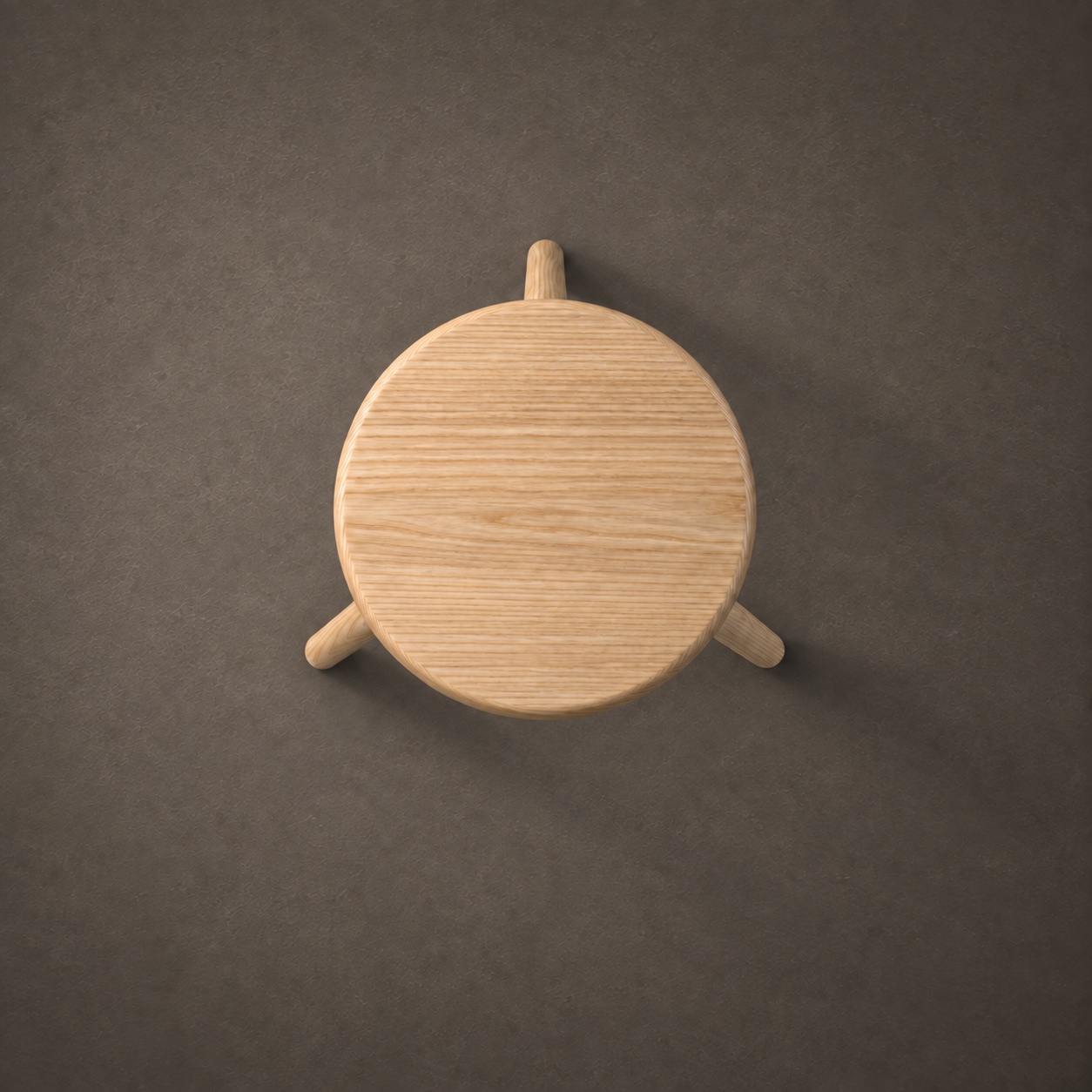

  3. Top

    360 mm across the feet, both ways

    From above, the seat is a true circle of Ø 320 mm with the grain running straight across. The feet land just outside its rim, which is why it will not tip when you lean.

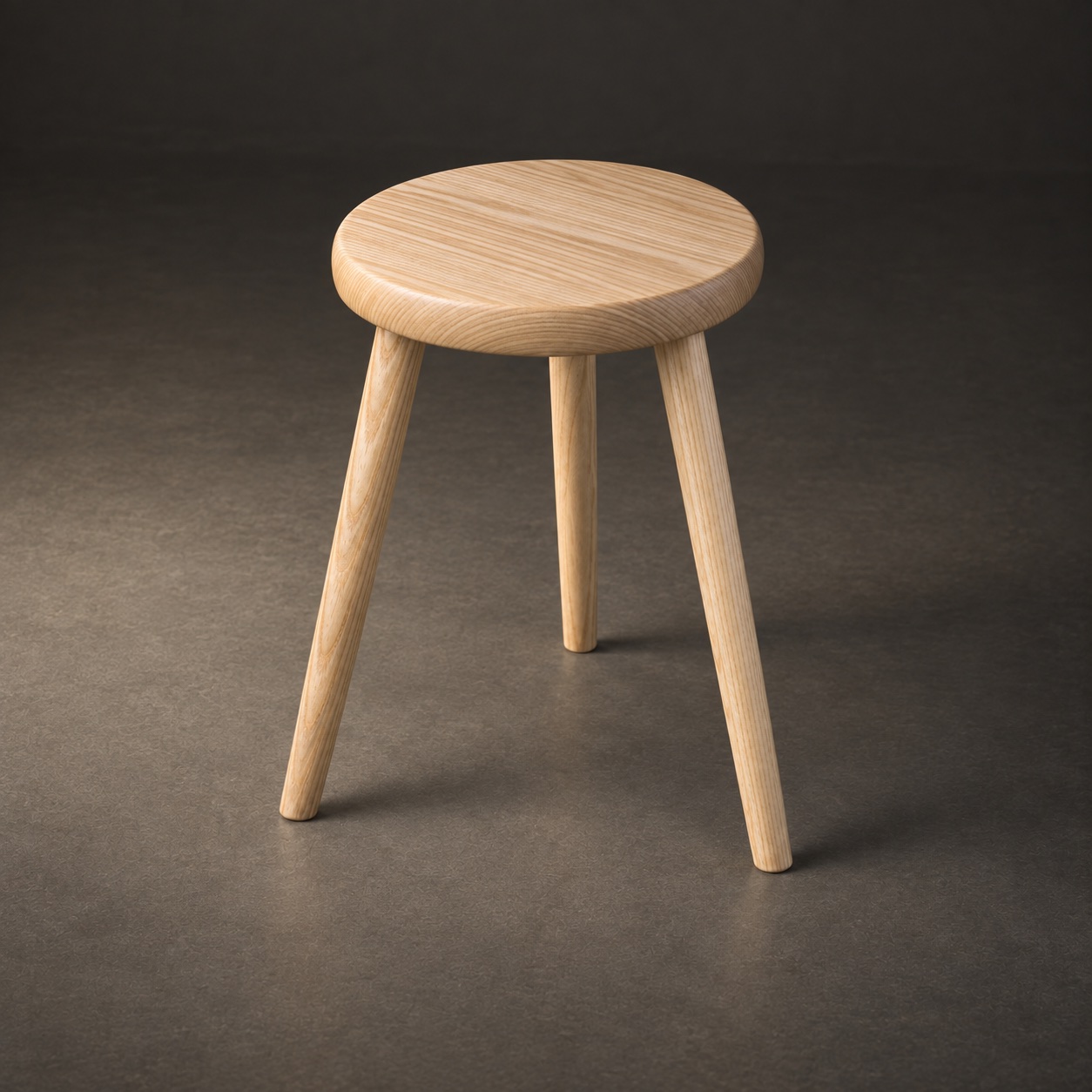

  4. Three-quarter

    360 mm across the feet, 450 mm overall

    This view is not square to the camera, so its lines give overall figures. The legs sit in round blind mortises, and nothing shows through the seat.

Specification

Material
Solid English ash
Finish
Hard-wax oil, matte
Seat
Ø 320 × 30 mm
Height
450 mm
Footprint
360 × 360 mm
Legs
Ø 36 → 24 mm
Leg splay
12°
Joints
Glued blind mortise
Weight
2.4 kg
Load tested to
150 kg

Close up · Fig. 3 to 5

It cannot rock on any floor.

Three points always share a plane, so all three feet touch down whatever the floor does. We turn each leg from its own billet of ash and glue it into a round blind mortise. Nothing is screwed, so nothing works loose, and the feet are bare end grain, oiled like the rest.

Tenon
Ø 22 × 24 mm
Edge radius
8 mm
Clamp time
24 h

Fig. 3

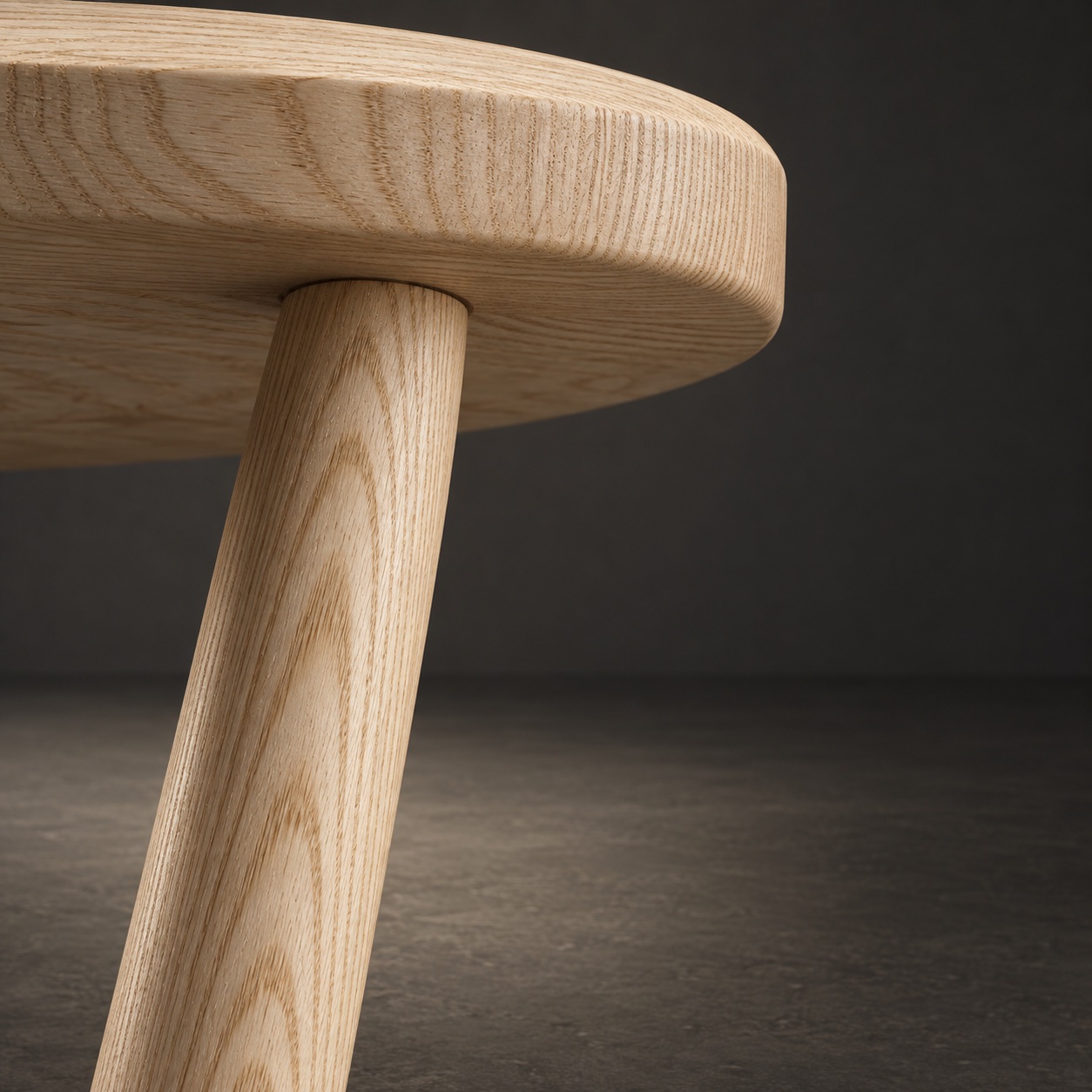

Looking up at one turned ash leg where its shoulder enters the underside of the seat in a round blind mortise.
Leg below the blind mortiseDrawn: leg below the joint Ø 33 mm.

Fig. 4

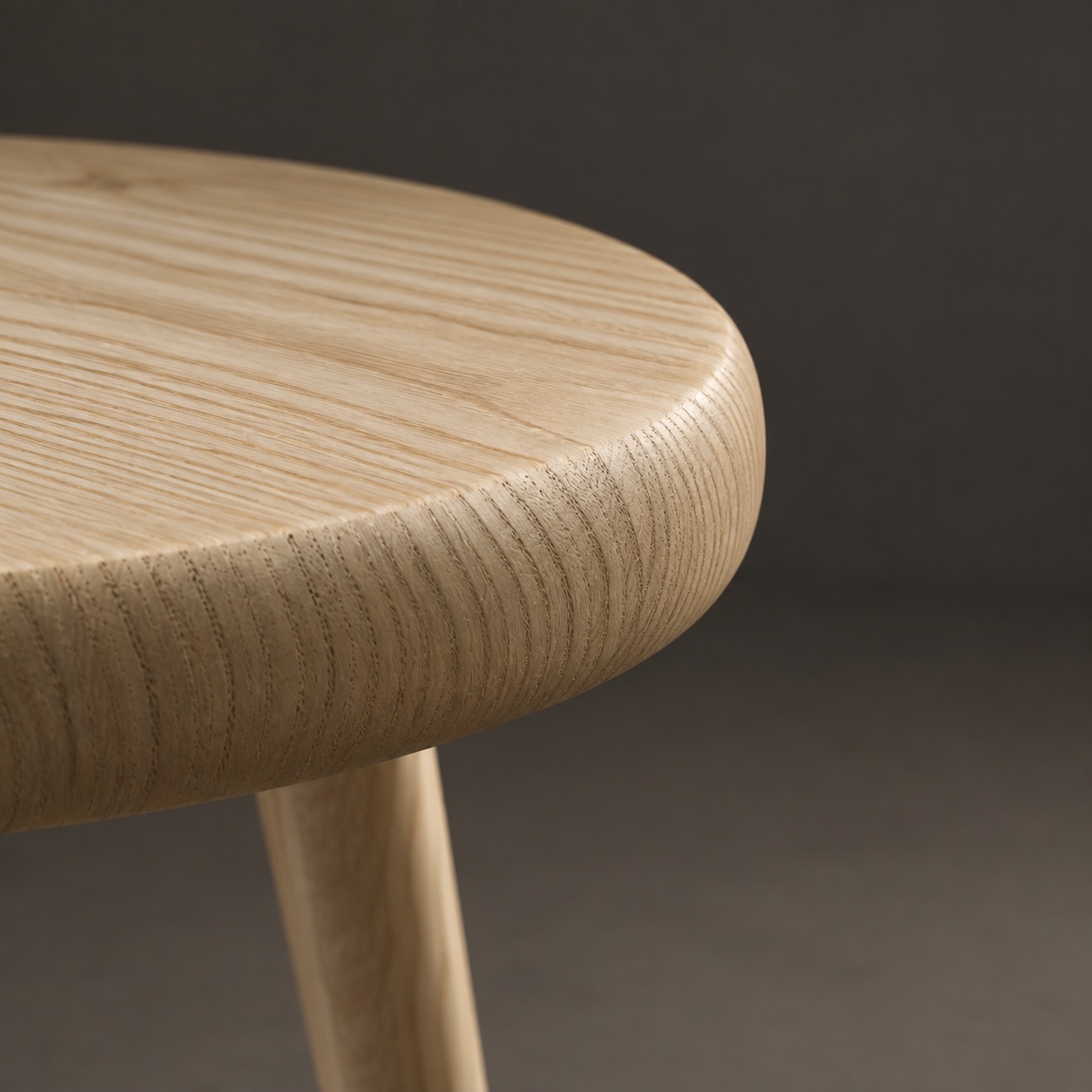

The seat's rounded edge seen almost side on, with the end grain running round it under a matte oil.
Seat edge, rounded above and belowDrawn: seat thickness 30 mm.

Fig. 5

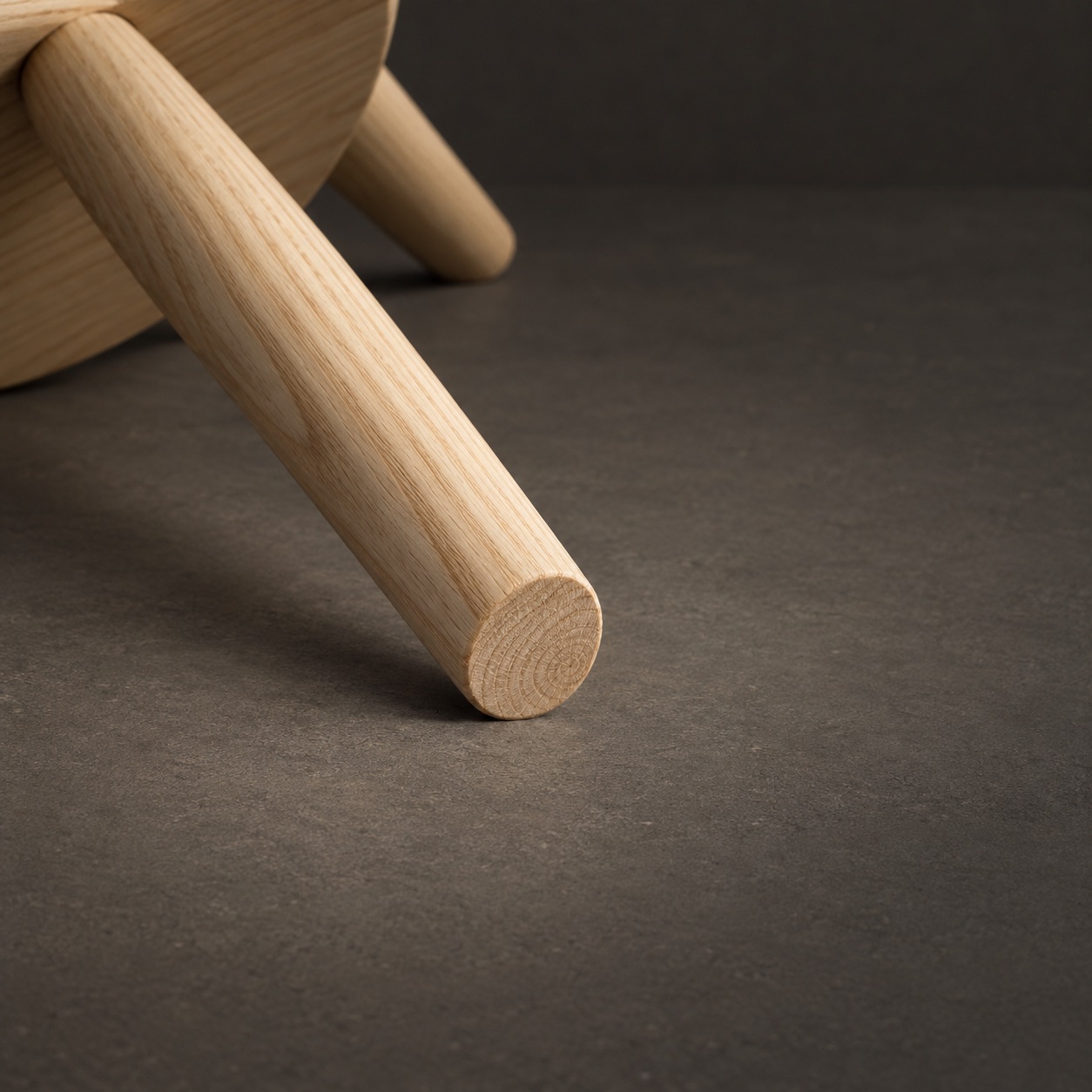

The stool laid on its side, showing the flat oiled end grain of one foot resting on the graphite floor.
Foot, bare oiled end grainDrawn: foot Ø 24 mm.

Kerf & Grain · Batch 14 record sheet

Turned 4 to 11 August 2026

Sample records written for this page

Each stool ships with its own record

Every stool is measured on the bench before oiling, and its card goes in the box. Batch 14 was twelve stools, and every height came in within 0.6 mm of 450 mm.

Heights
449.4–450.6 mm
Seats
Ø 319.6–320.5 mm
Available
5 of 12
Batch 14: measurements of each stool, in millimetres and kilograms with inches and pounds
DrawingStoolTurnedSeatHeightSplayWeightStatus
14-0104 AugØ 320.1 mmØ 12.60 in450.2 mm17.72 in12.0°2.38 kg5.25 lbShipped
14-0204 AugØ 319.8 mmØ 12.59 in449.7 mm17.70 in12.1°2.41 kg5.31 lbShipped
14-0305 AugØ 320.3 mmØ 12.61 in450.4 mm17.73 in11.9°2.44 kg5.38 lbShipped
14-0405 AugØ 320.0 mmØ 12.60 in449.6 mm17.70 in12.0°2.36 kg5.20 lbShipped
14-0506 AugØ 319.6 mmØ 12.58 in450.1 mm17.72 in12.2°2.47 kg5.45 lbShipped
14-0606 AugØ 320.4 mmØ 12.61 in450.6 mm17.74 in12.0°2.40 kg5.29 lbReserved
14-0707 AugØ 320.2 mmØ 12.61 in449.4 mm17.69 in11.8°2.43 kg5.36 lbReserved
14-0807 AugØ 319.9 mmØ 12.59 in450.0 mm17.72 in12.1°2.35 kg5.18 lbAvailable
14-0908 AugØ 320.5 mmØ 12.62 in450.3 mm17.73 in12.0°2.49 kg5.49 lbAvailable
14-1008 AugØ 320.1 mmØ 12.60 in449.8 mm17.71 in11.9°2.42 kg5.34 lbAvailable
14-1111 AugØ 319.7 mmØ 12.59 in450.5 mm17.74 in12.1°2.39 kg5.27 lbAvailable
14-1211 AugØ 320.2 mmØ 12.61 in449.9 mm17.71 in12.0°2.45 kg5.40 lbAvailable

Swipe the table sideways for splay, weight and status.

The range

Side by side, at true scale

Every tile at one scale

We make four pieces, all in English ash under the same hard-wax oil. We photographed each from the same distance on one floor line, so what looks bigger is bigger. The shelf hangs low so you can reach it from the stool or the bench. Choose a piece to put it on the order below.

  • Fig. 6

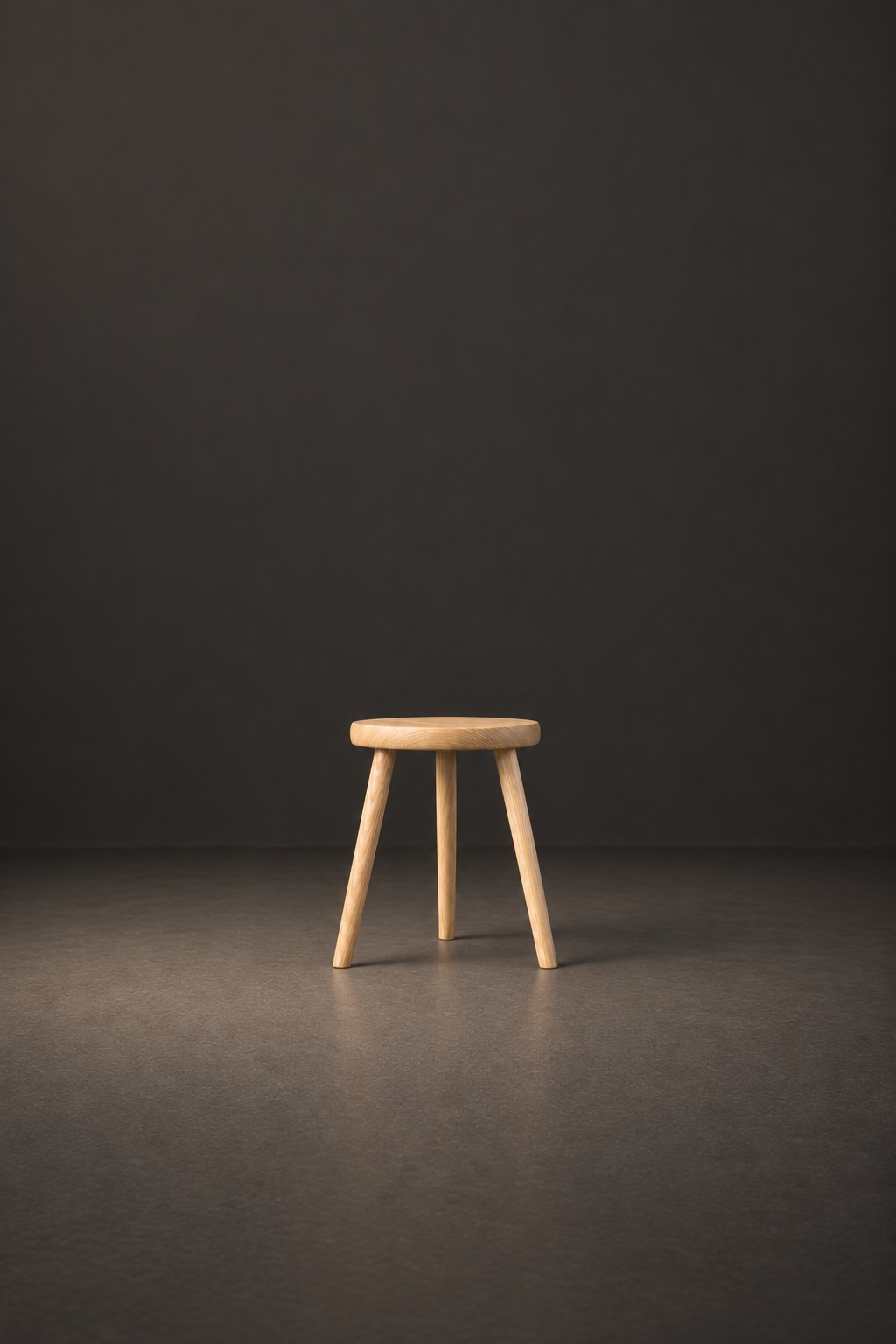

    The Three-Leg Stool from the front.
    Drawn: height 450 mm, width across the feet 360 mm.

    Three-Leg Stool

    £285

    Ø 320 × 450 mm · 2.4 kg

    Oiled ashBatch 14

  • Fig. 7

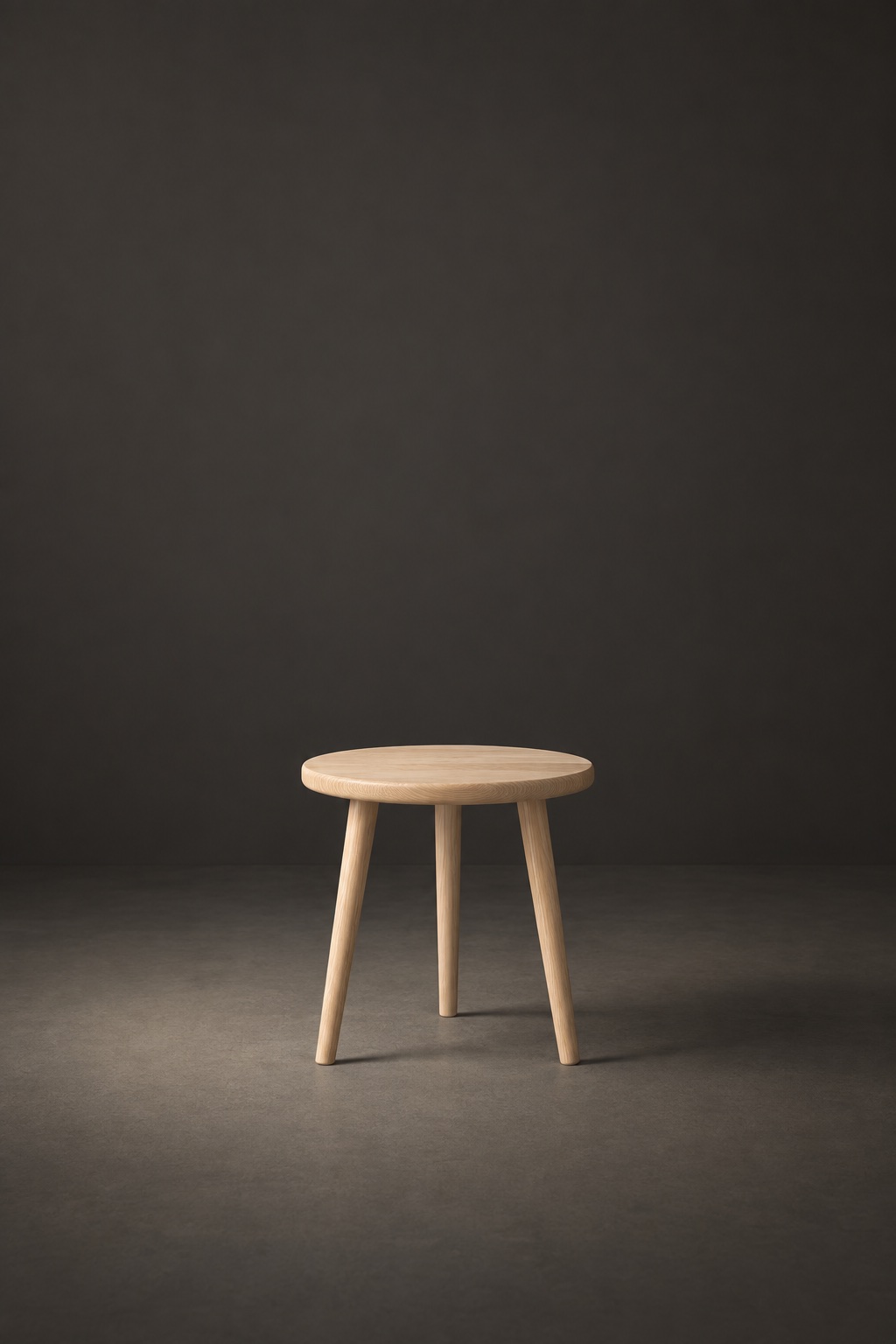

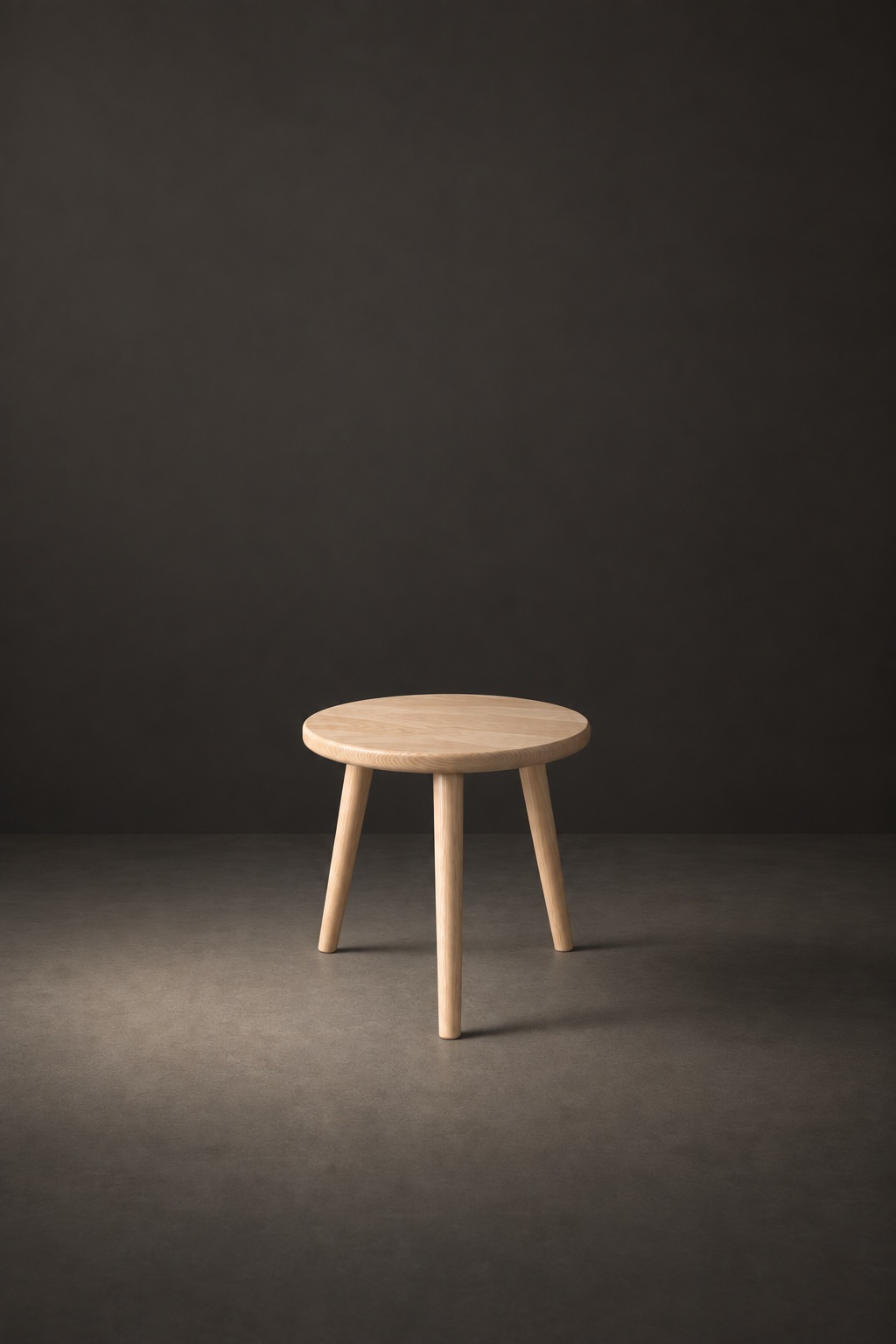

    The Round Side Table from the front.
    Drawn: height 500 mm, top Ø 480 mm.

    Round Side Table

    £420

    Ø 480 × 500 mm · 4.1 kg

    Oiled ashLast four

  • Fig. 8

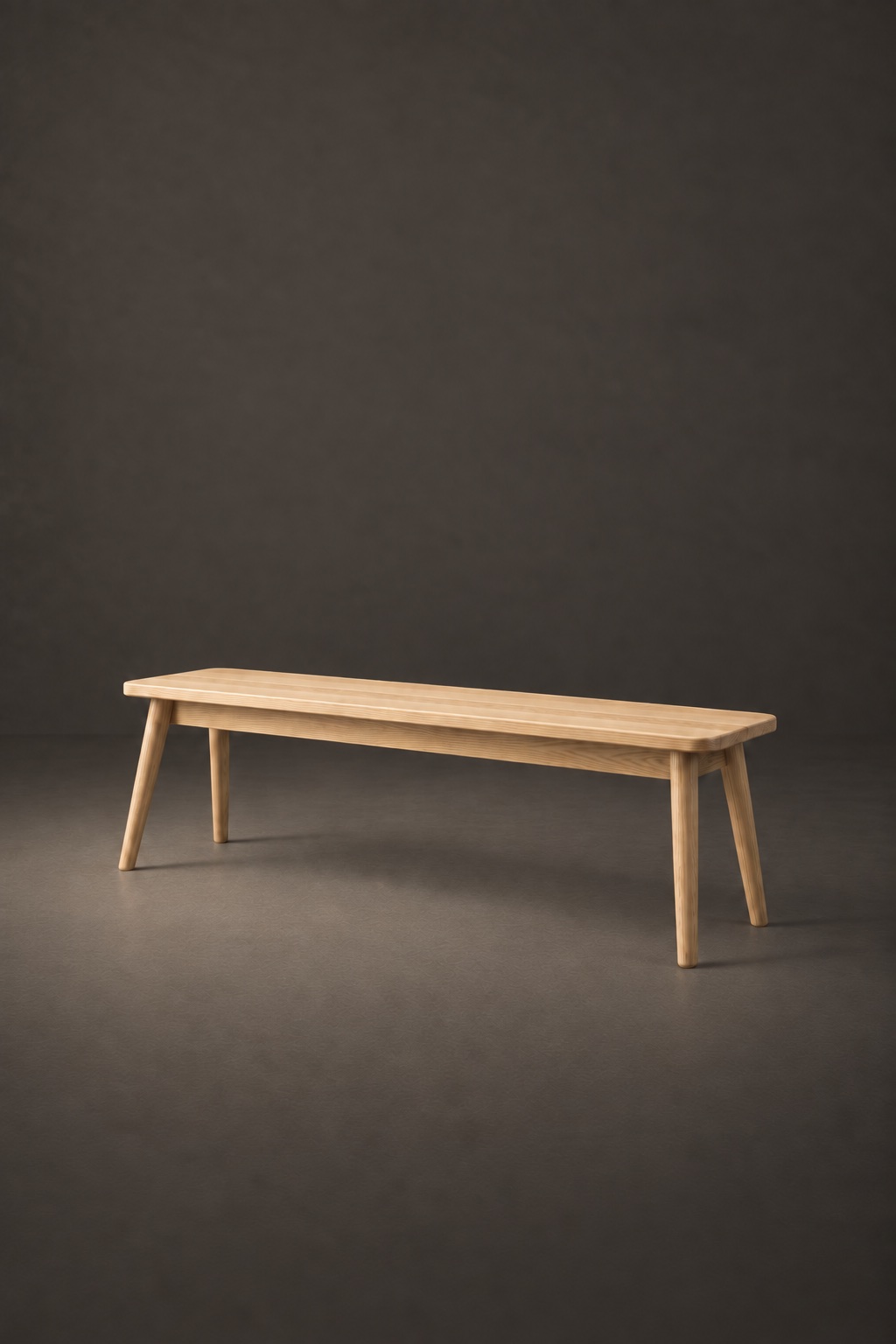

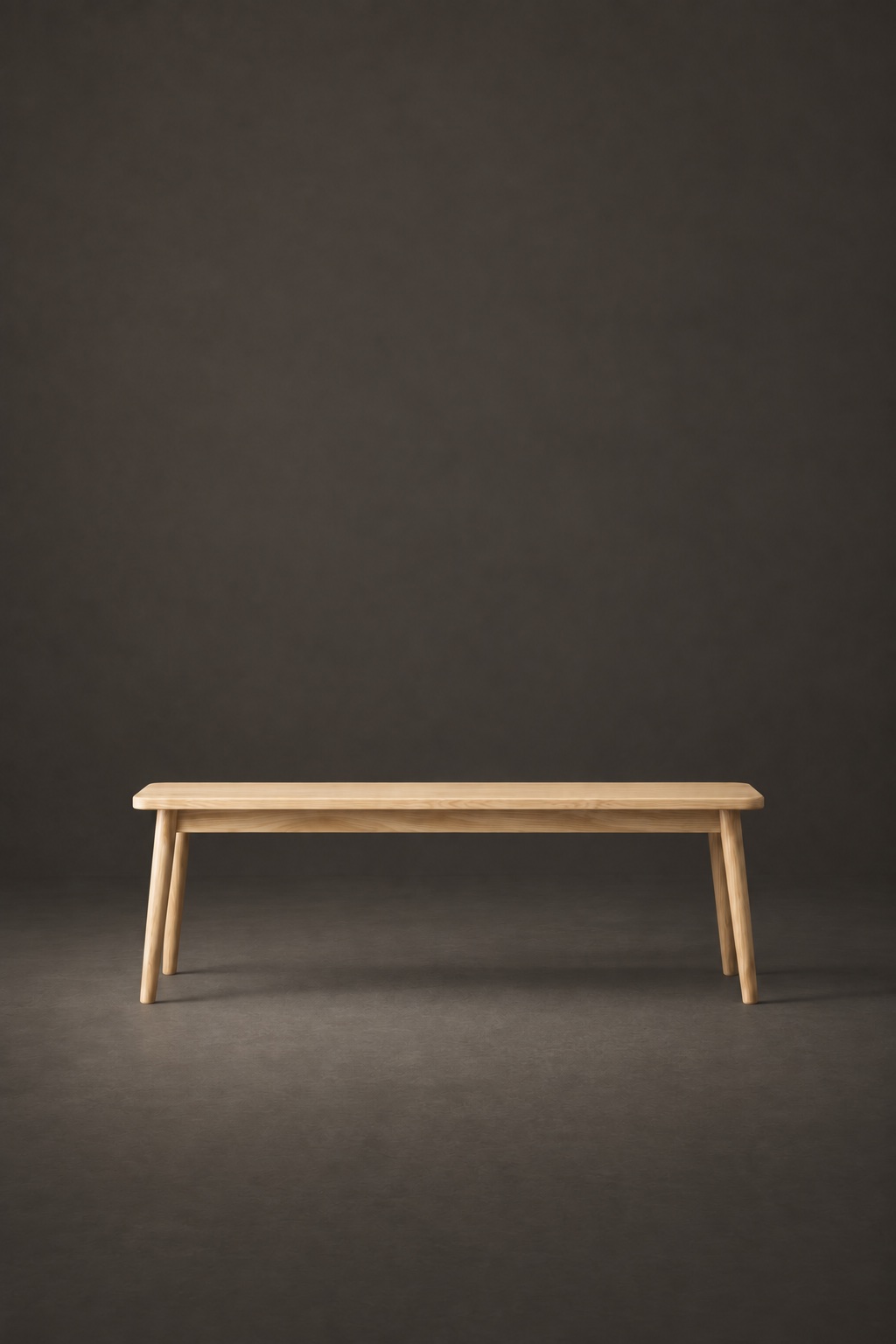

    The Long Bench from the front.
    Drawn: height 450 mm, length 1200 mm.

    Long Bench

    £760

    1200 × 360 × 450 mm · 9.8 kg

    Oiled ashMade to order

  • Fig. 9

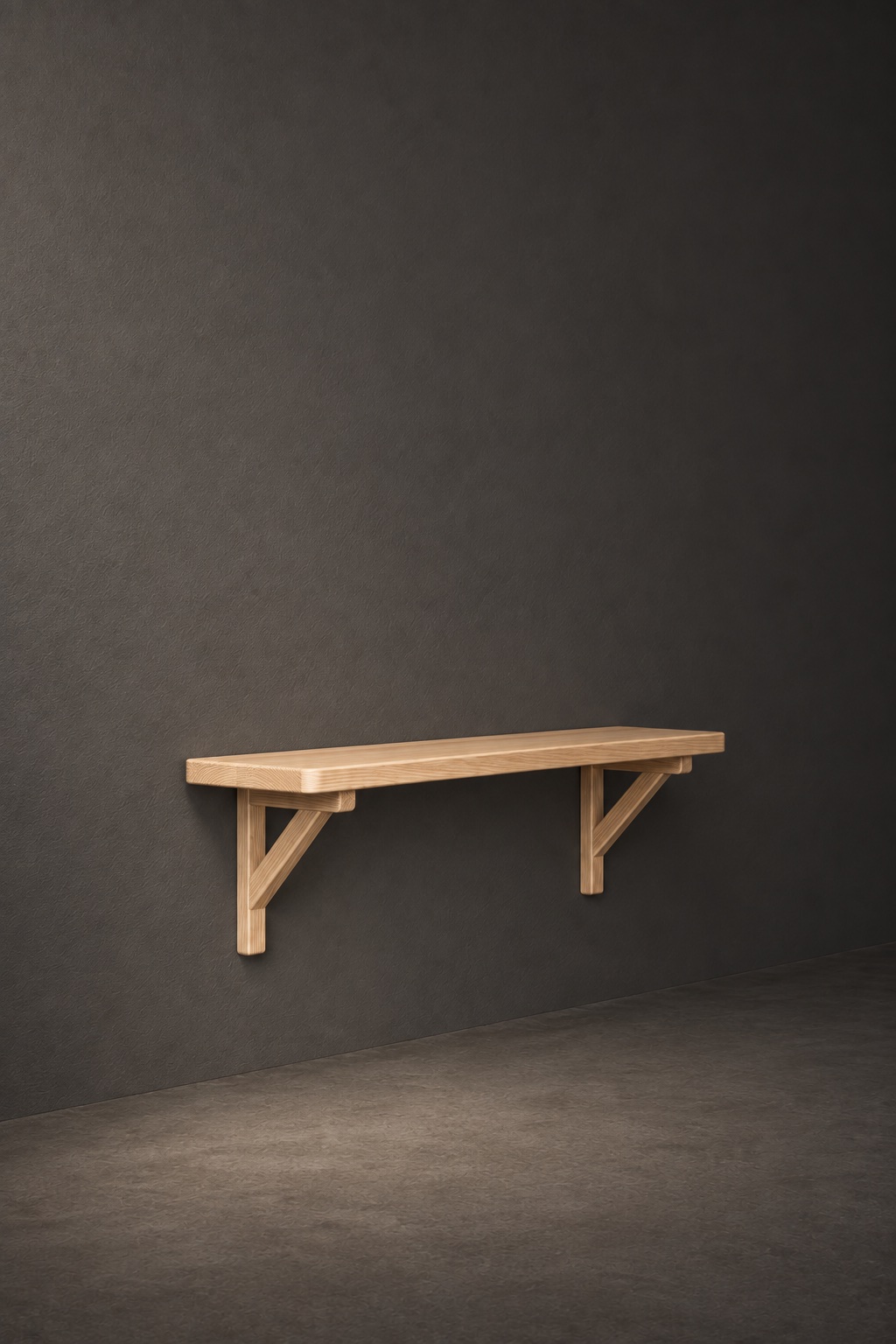

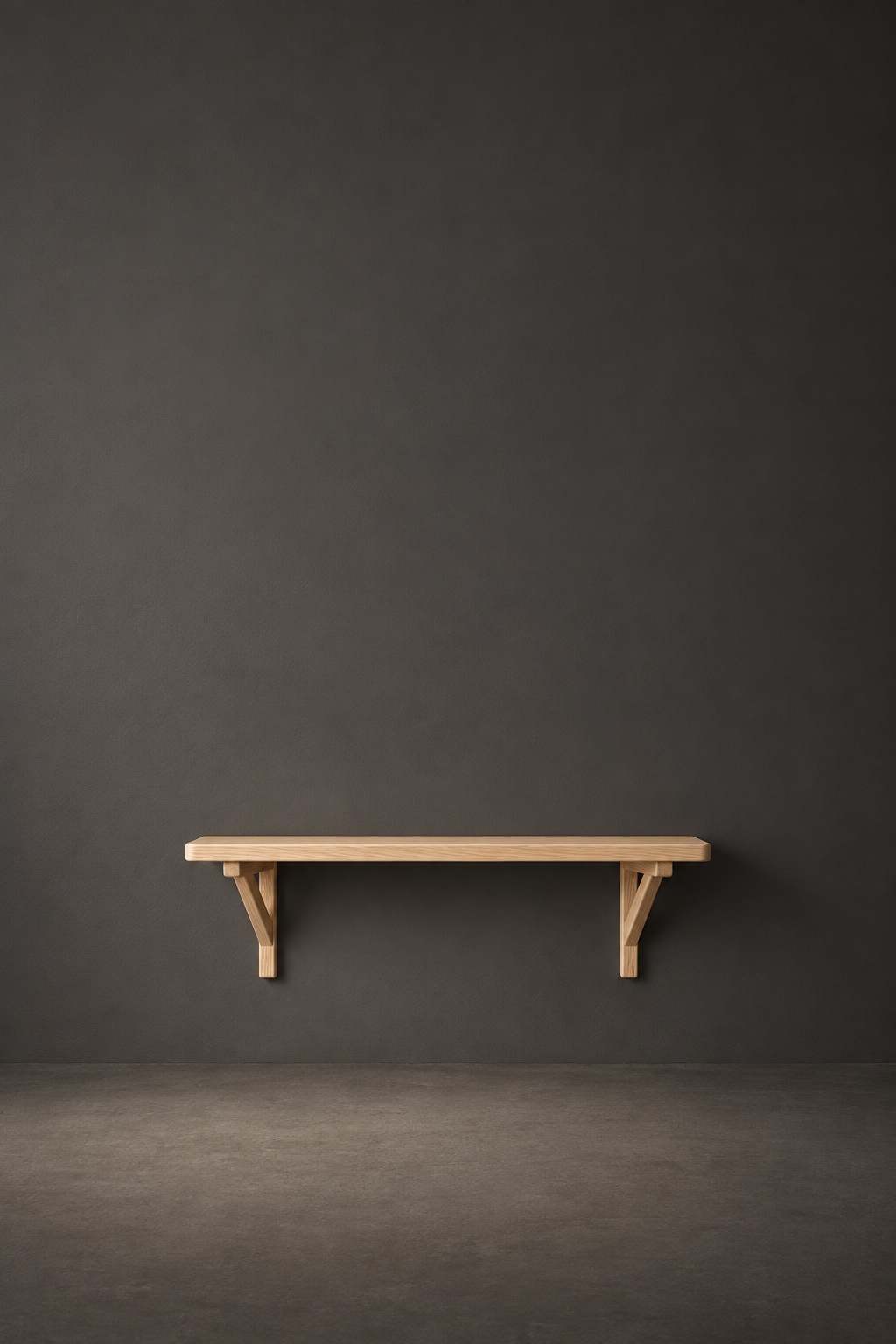

    The Bracket Wall Shelf hung low on a graphite wall, from the front.
    Drawn: top above the floor 365 mm, width 800 mm.

    Bracket Wall Shelf

    £240

    800 × 240 × 220 mm · 3.2 kg

    Oiled ashNew

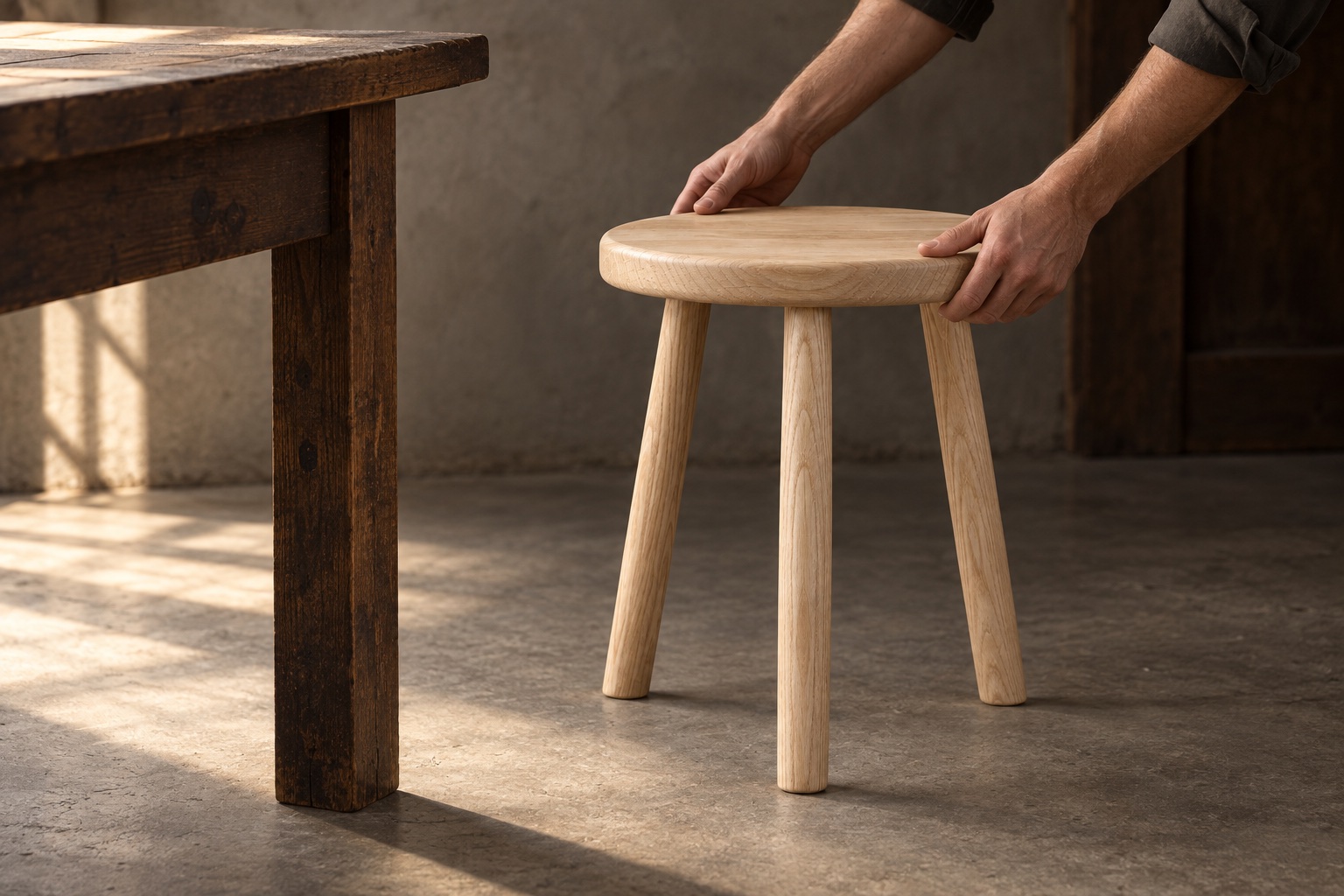

Two hands drawing the Kerf & Grain stool into place beside a dark workshop table, window light across a concrete floor.
Drawn up to the workshop table

In use

Pull it up to any table

At 450 mm it sits at a desk or a kitchen table, and at 2.4 kg it moves with one hand. The one in our workshop lives beside the lathe and gets stood on for the top shelf most days.

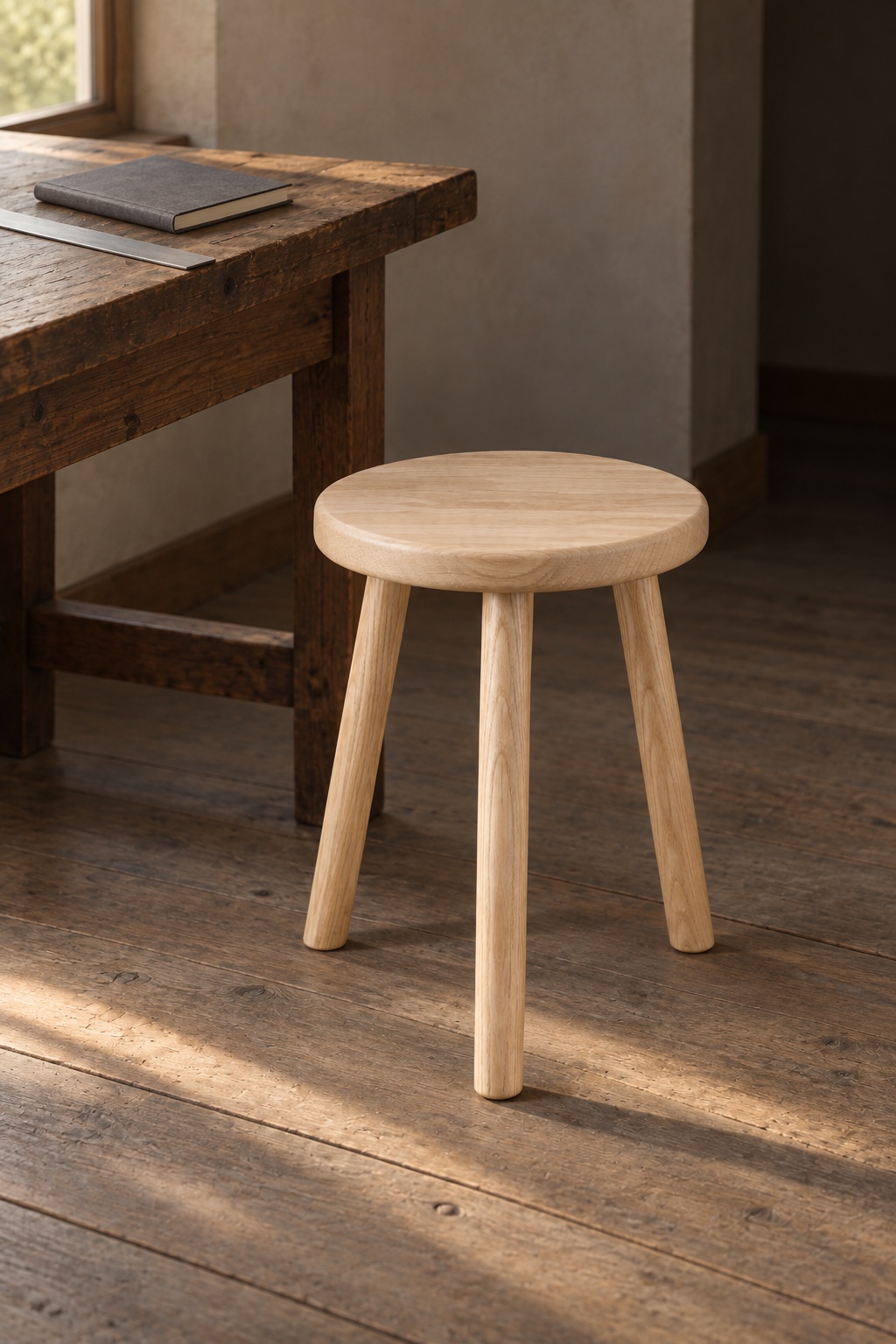

The stool on floorboards beside a worktable holding a closed notebook and a steel rule.
Beside the worktable

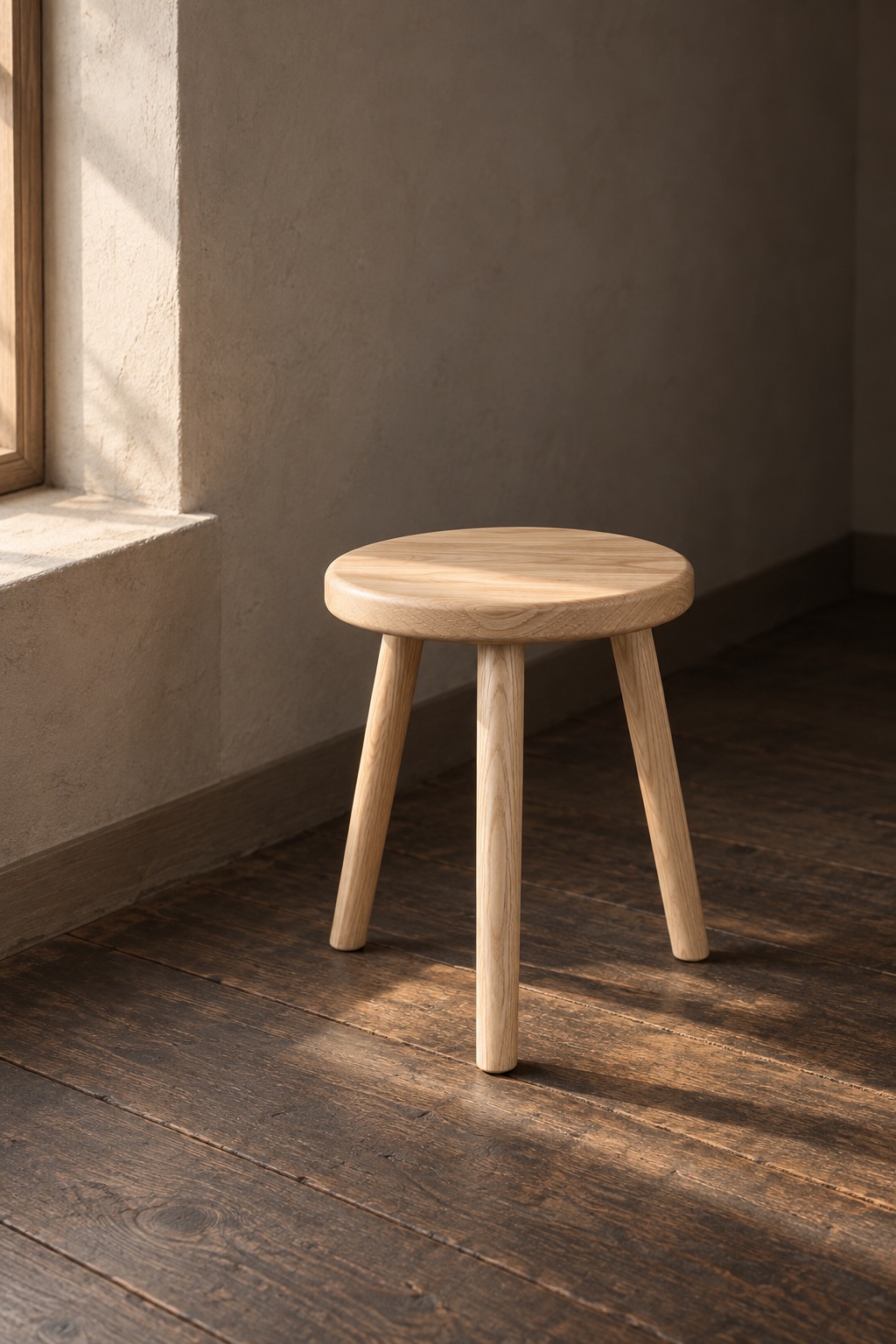

The stool under a deep window sill in low evening light.
Under the sill

In print, and what they measured

Reviewers brought their own calipers

Four trade magazines lived with one of our stools for a month. Each tested something different and wrote the number down.

Publications, reviewers, quotes and figures are sample data.

  • LATHE LEDGER

    August 2026

    7mm

    Floor out of level, and it did not rock

    “It stood level on a floor we had given up on.”

    Ruth Aldane, reviews editor · on a flagstone kitchen floor
  • SAWHORSE MONTHLY

    July 2026

    0.4mm

    Seat out of round, by their calipers

    “A rare stool that looks as good from above as from the side.”

    Owen Castellan, contributor · at a drawing desk in Leith
  • BENCH RULE

    June 2026

    150kg

    Load held, no movement at the joints

    “Nothing on it will need tightening for years.”

    Priya Hollis, workshop tester · on the load rig in Leeds
  • SPOKESHAVE

    Spring 2026

    12.0°

    Splay on all three legs, within 0.2°

    “Every leg sits at the same angle, and that takes a good jig.”

    Mina Varga, technical editor · by a bay window in Hull

Order

Five of Batch 14 are still for sale

We measure each one again on the day it ships. To order another piece, choose it in the range above.

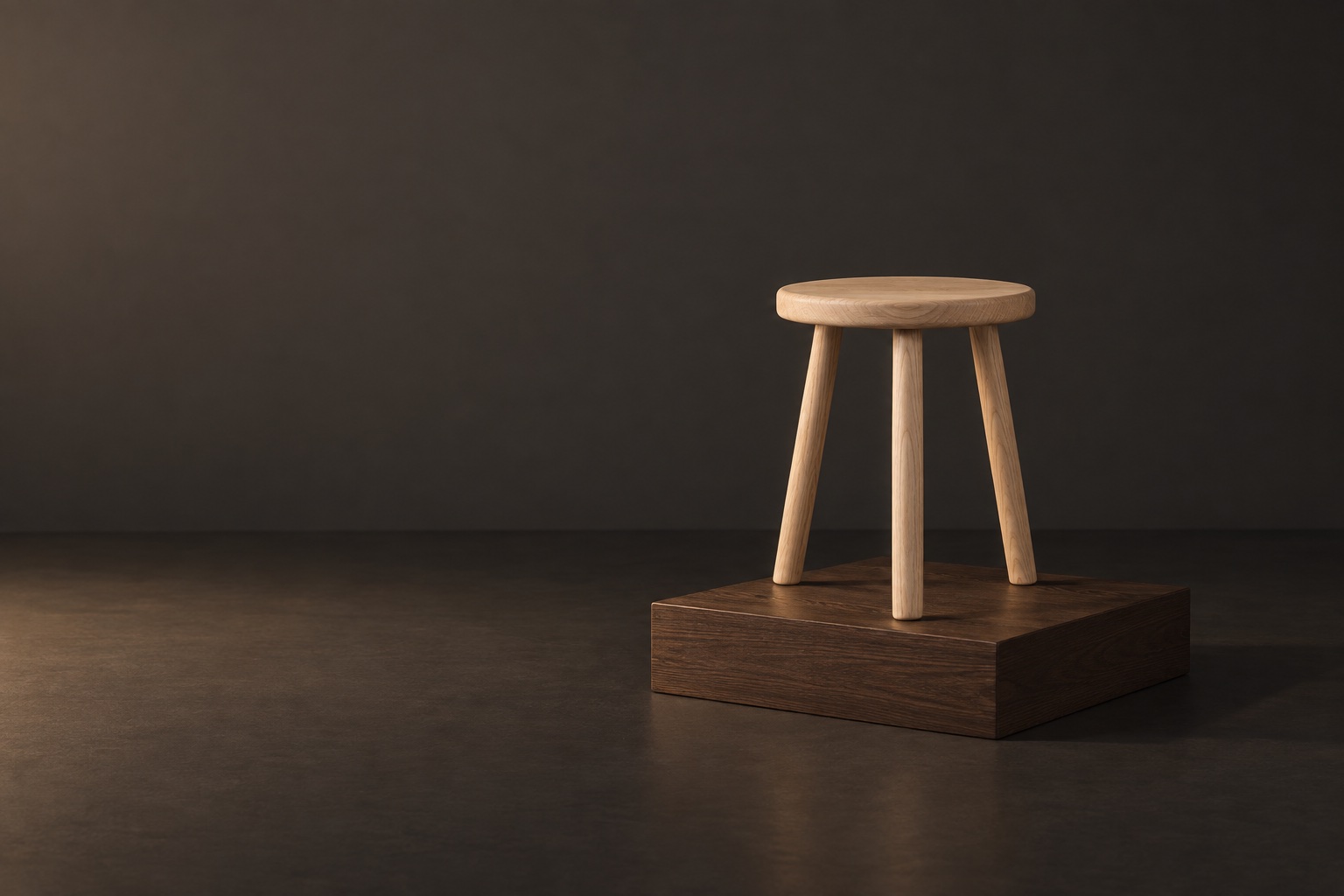

The Kerf & Grain stool on its oak block at dusk, the wall gone dark and its shadow long.
Drawn: height 450 mm, seat Ø 320 mm.

Turned in Sheffield

Your order

Made to order by Kerf & Grain; each stool ships with its measured card.

Three-Leg Stool

Ø 320 × 450 mm · 2.4 kg

Oiled ash, the one finish

£285

Nothing in your order yet.

  • Arrives assembled in five working days
  • Thirty days to return it, collected at no charge
  • Packed in wool felt, with no plastic
